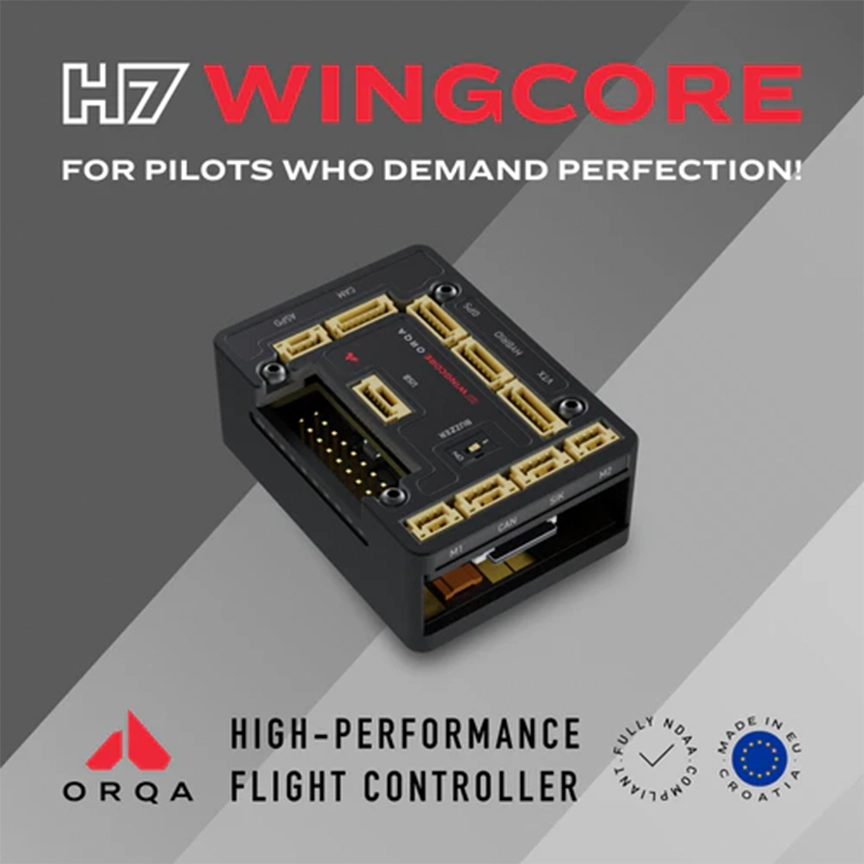

Orqa H7 WingCore Flight Controller

The Orqa H7 WingCore is an NDAA-compliant flight controller designed specifically for fixed-wing drones, VTOL craft, and UAVs. It contains a powerful STM32H743 MCU, which runs any of the common flight controller firmware (iNav, ArduPilot, PX4). Equipped with enough servo outputs for even the most complex fixed-wing platforms, the H7 WingCore is equally capable in both defense and enterprise roles.

• Custom NDAA-compliant OSD (Text + Graphics)
• On-board integrated buzzer
• Twin analog switchable camera inputs
• Direct solder-free connection to most peripherals

• MCU: STM32H743
• IMU: Twin (orthogonal) ICM-42688
• Barometer: DPS310
• Power Supply: 11.1VDC - 44.4VDC (3 - 12s Li-ion)
• BEC: 5V/8A, 6/7.2V/10A
• Current Sensor: 160A On-Board
• FC Software: iNav, ArduPilot, PX4
• Telemetry: SIK Radio
• Interfaces: 1x full UART, 3x UART, 3x GPIO, 3x ADC, 11x PWM, 2x I2C, CAN bus, Micro SD-Card, 4x Motor Outputs (Dshot/PWM)
• Mounting: 30.5 x 30.5 mm
• Dimensions: 54 x 39 x 17 mm
• Weight: 36.6 g

• 1x Orqa H7 WingCore FC
• 1x Cable FC - Hybrid vTx/C2 Rx (GH 6 pin - GH 6 pin, 150 mm)
• 1x Cable FC - VTX (GH 7 pin - GH 7 pin, 150 mm)
• 1x Cable FC - Camera 1 / Camera 2 (GH 6 pin - 2x PicoBlade 3 pin, 200 mm)
• 1x Cable FC - GPS (GH 6pin - GH 6 pin, 150 mm)
• 1x Cable FC - ASPD (GH 4pin - GH 4 pin 200 mm)
• 1x Cable FC - SIK (GH 4 pin - GH 6 pin, 150 mm)
• 1x Cable FC - CAN (GH 4 pin - GH 4 pin, 150 mm)
• 1x Cable FC - USB PCB (GH 5 pin - SH 5 pin, 100 mm)
• 2x Cable FC - Mot (GH 3 pin - GH 3 pin, L=200 mm)
• 1x Cable FC - Mot3&4 (GH 6 pin - 2 x GH 3 pin, L=200 mm)
• 1x Cable FC - Battery XT60 (XT60 Male - Open terminal, 200 mm)
• 1x USB PCB
